All models with mechanical clutch.
All models with auto-lubrication system to cylinder head & external tank for cooling the oil
All models are CE compliant.
All models with 80 mm (3.149″) spindle hole, ASA D1-8
APRON: LEFT HAND/METRIC
Standard with

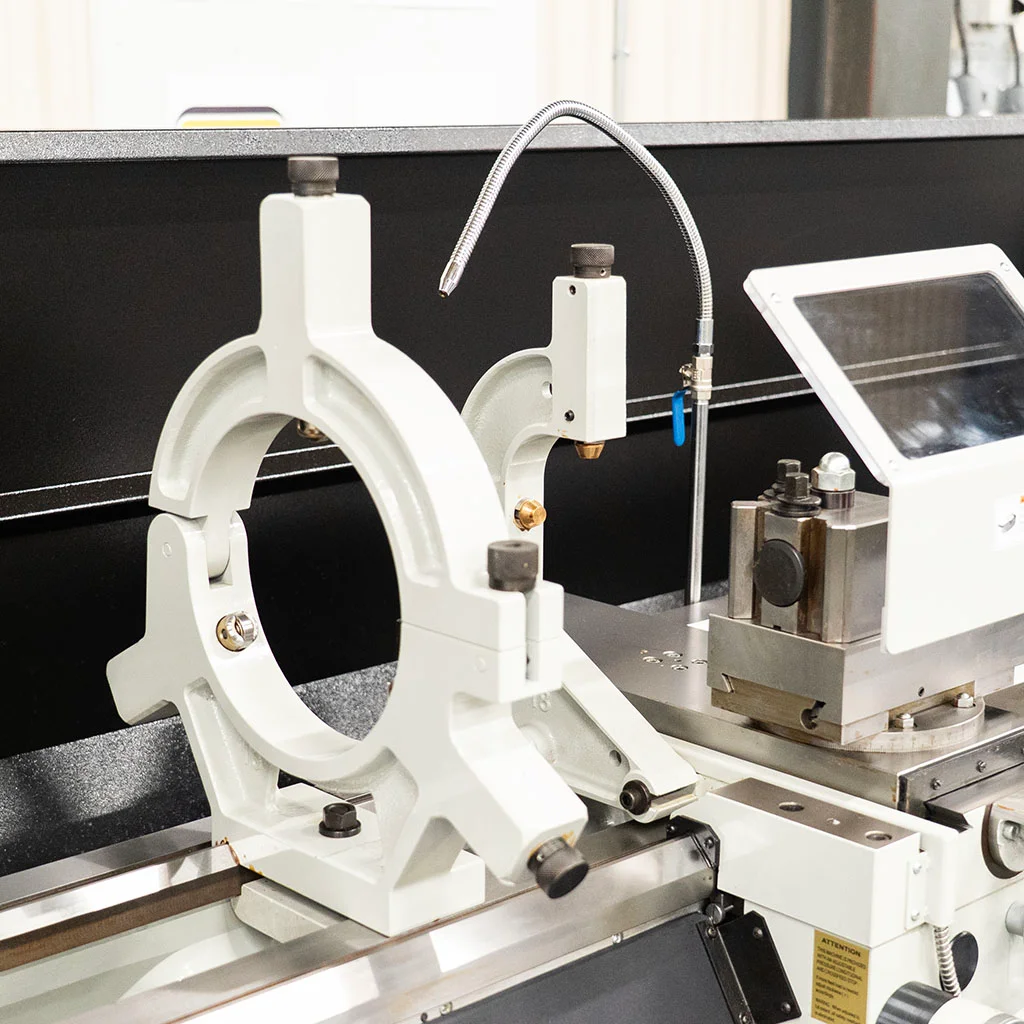

Fixed support steady rest
Co-running steady rest
Splash guard on the back
Halogen work lights
Coolant system
Flange for 9″ chuck
Dead centermt.5 x 2 pcs.
Machine feet x 8 pcs.
Tool kit & box
Operating instructions and spare parts list
Extra equipped with

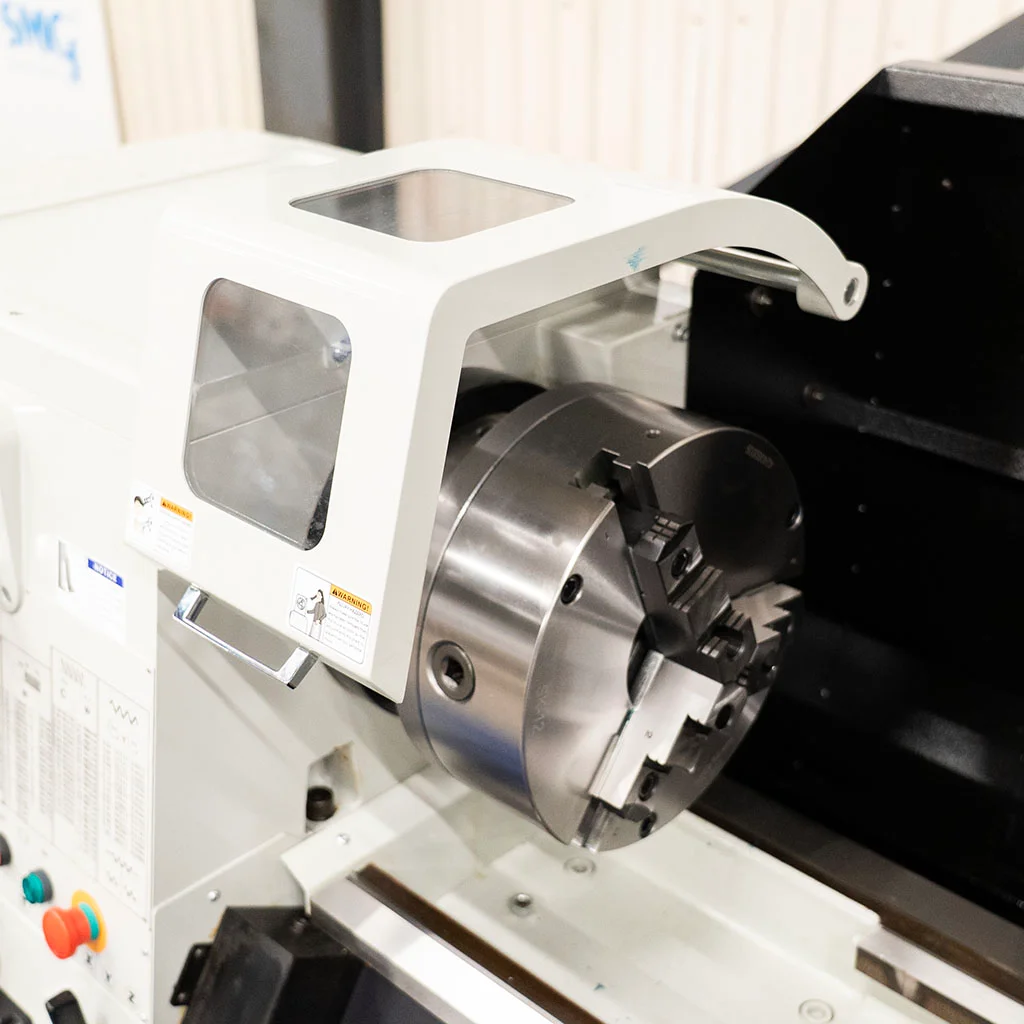

3-jaw chuck 12″ sk type with soft jaws
4-jaw independent chuck 12″
Flat panel 14″ d1-8
Quick steel bracket with 6 holders
Rapid feeding
Stud height
230mmCenter distance
2000mmSwing over bed
460mmSwing over transverse slide
298mmSwing over gap
710mmX axis movement
272mmFast feeding
YesSpindle effect
10HPChuck
12″Spindle speed
20-1600rpmSpindle bore
80Machine length
3535mmMachine depth
1120mmMachine height
1900mmMachine weight
2700kg
