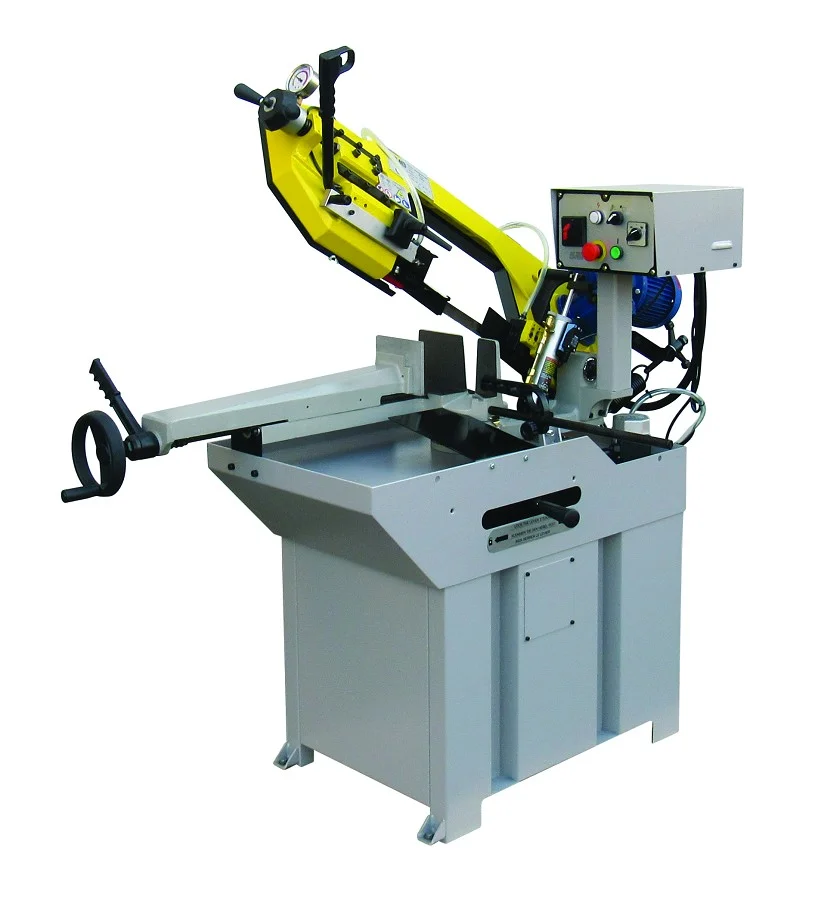

Gravity band saw for miter cutting from 0° to 60° right.
Cast iron main structure.

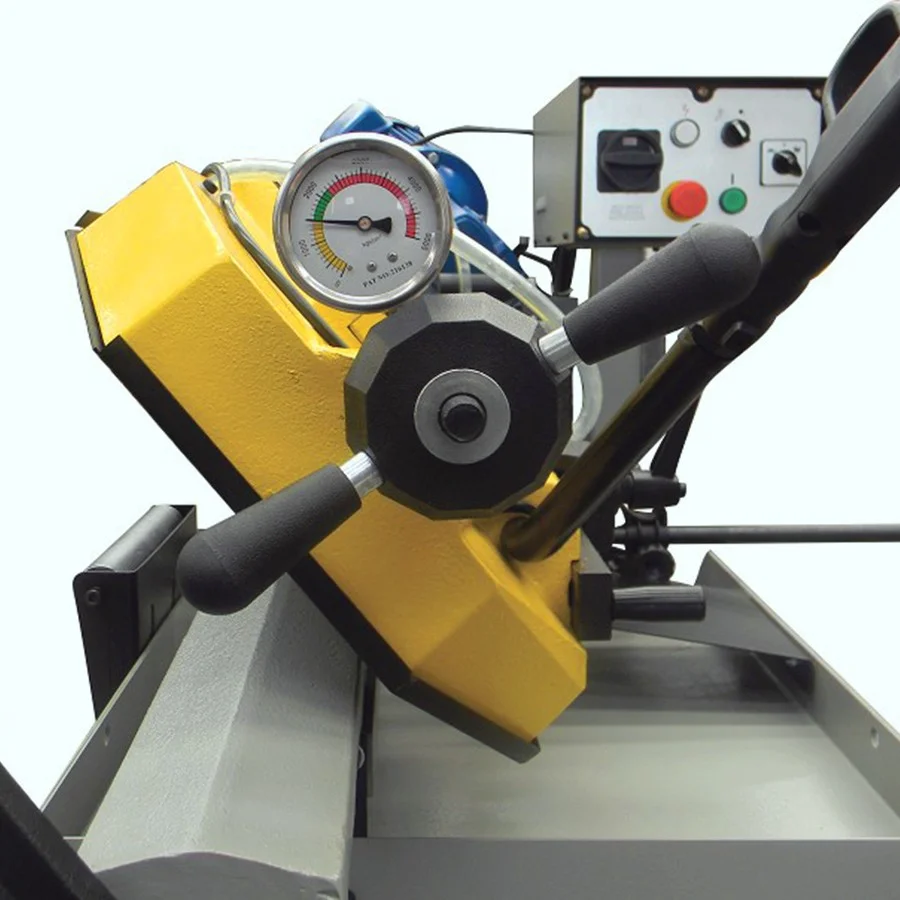

Hydraulic sensor showing the band tension, and handle with control button.
Blade guidance with combined action of side bearings, cabin plates and top bearings.

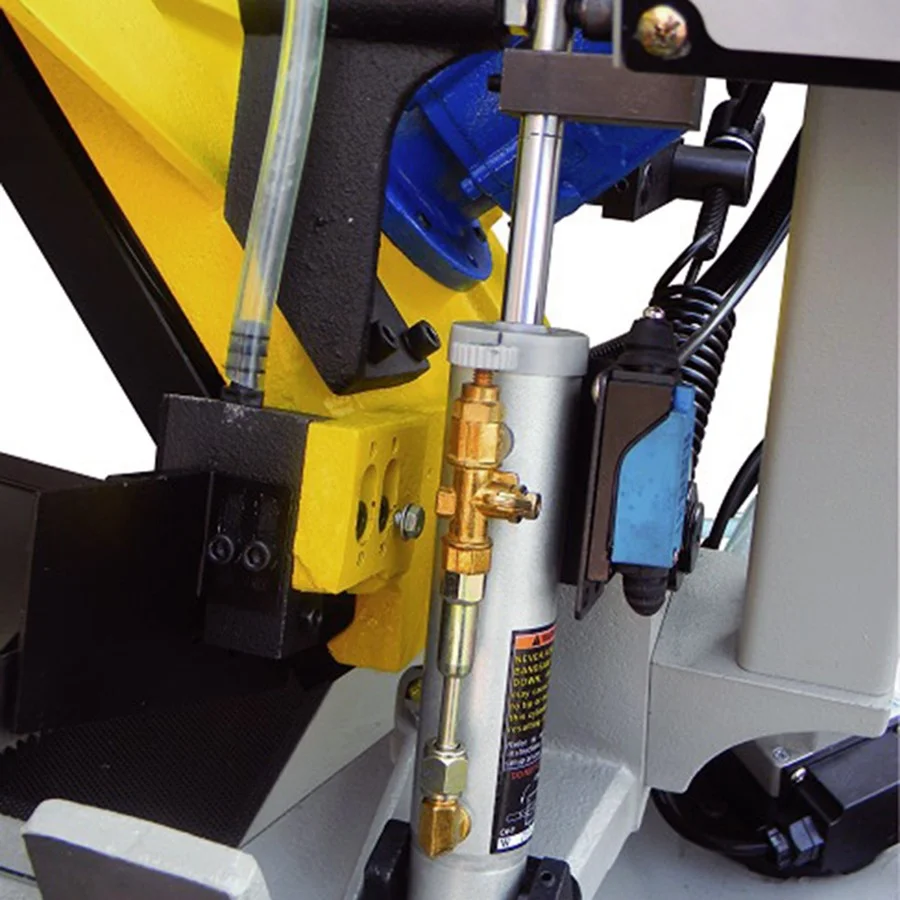

Assisted cutting modality: thanks to a hydraulic cylindrical brake that controls the gravitational movement; once the cut has been made, the head must be lifted by hand from the operator.

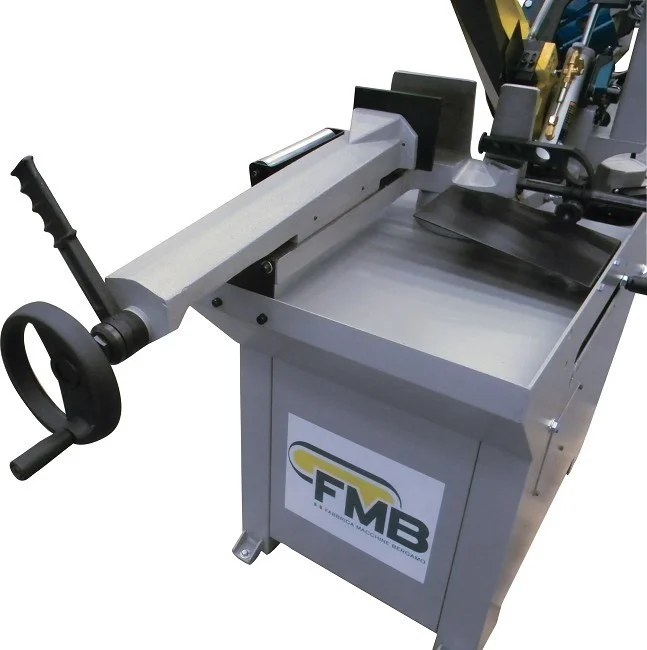

Manual clamping screw equipped with a quick locking system for the piece.
Mechanical locks at 0° and 60° for head rotation and graduated meter reading system with a strong locking lever.
Measuring rod with milimetric indication and rotating length stop.
Cooling tank installed on the upper part of the foundation with release nozzle and electric pump for cooling both blade guides.

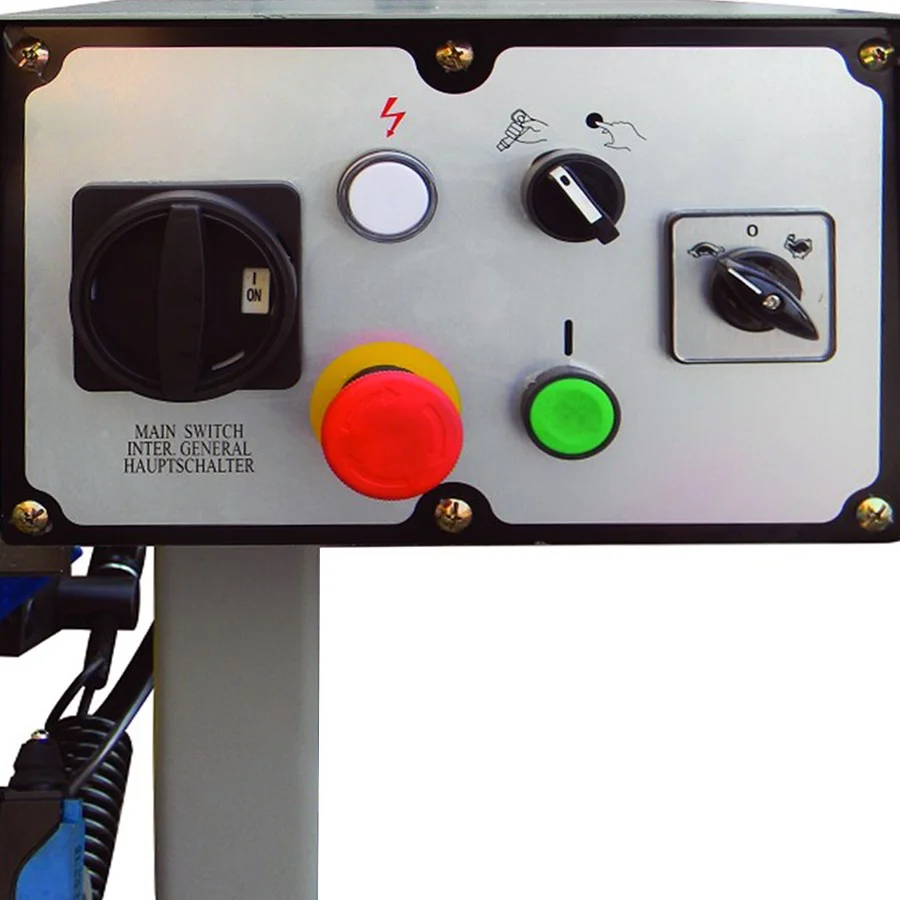

Electrical cabinet with 24VAC auxiliary voltage, main switch and user controls.
Capacity round
220mmCapacity rectangular
120x250mmBand speed
35/70m/minMiter
0-60°Band dimension
2450x27x0,8Voltage
400vLASSE CEHLIN
